Example AWG custom waveform

You can generate customized, fully arbitrary waveforms with Moku:Lab Arbitrary Waveform Generator.

Define the waveform you need in a simple text file. The file can be loaded from the SD card in your Moku:Lab, or the iPad or Window app.

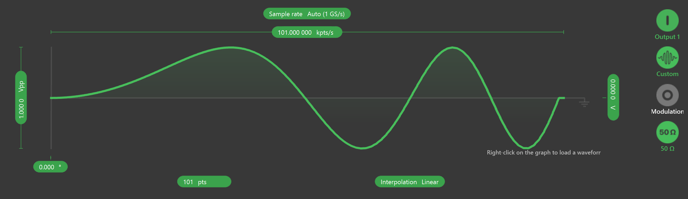

To get started, save this example as a text file and load into the AWG, which will produce the waveform below.

We also have a detailed application note on using MATLAB and Moku:Lab's Arbitrary Waveform Generator.
